VMware vSphere Web Client hiding vCenter Operations Manager Health Badge

June 3, 2014 1 By Allan Kjaer

After I have done a upgrade of a VMware vCenter Server to 5.5 Update 1a and vCenter Operations Manager 5.8.1, I was checking around to see if everything was working and after logging in to the vSphere Web Client I could not find the the health bagde.

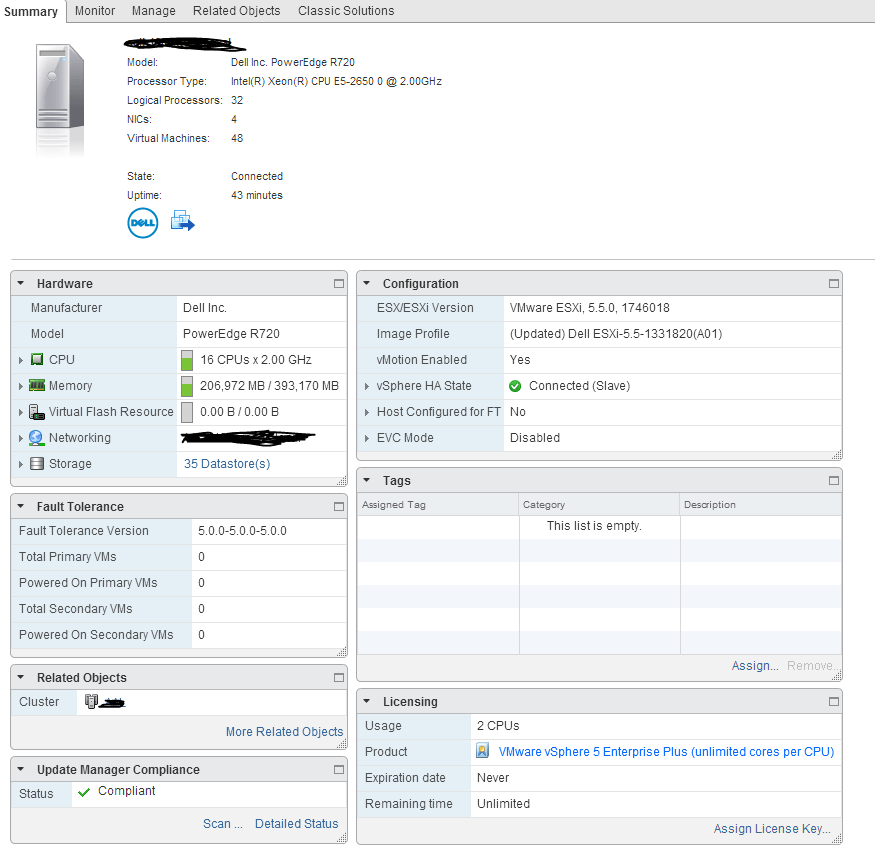

vSphere Web Client

The was also a odd menu item on the home screen with Legacy application, Screenshot missing.

First I tried updating the vCenter registration from the vCenter Operations Manager, and unregister/register the vCenter Server, rebooting the vCenter Operations Manager vApp and the vCenter server, nothing worked.

After some searching around I found a catalog on the server having the VMware vSphere Web Client called:

C:ProgramDataVMwarevSphere Web ClientSerenityDBserenity

In this catalog there is the personal settings for each user. but also an common/all users settings and this is called:

C:ProgramDataVMwarevSphere Web ClientSerenityDBserenityALL

I deleted the ALL folder (renamed it for backup) and restarted the VMware vSphere Web Client and my vCenter Operations Manager Health Bagde was back.

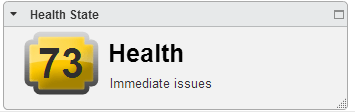

Health Badge
